BS5163 Resilient Seated Gate Valve
Technical Parameter

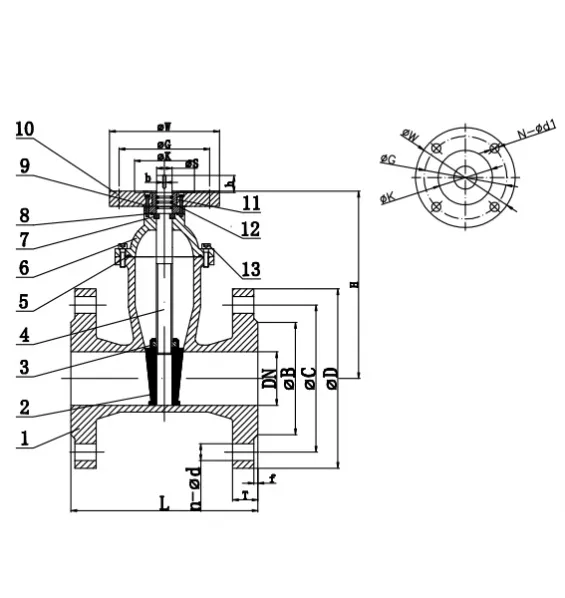

Part & Materials
| No | Part | Material |
| 1 | Body | Ductile Iron GGG50 |
| 2 | Wedge | Ductile Iron GGG50 +EPDM |
| 3 | Stem | SS420 |
| 4 | Stem Nut | Brass |
| 5 | Gasket | EPDM |
| 6 | Bonnet | Ductile Iron GGG50 |
| 7 | Locating Ring | Brass |
| 8 | O Ring | EPDM |
| 9 | Bolts | CS Gr 8.8 |
| 10 | Flanged | Ductile Iron GGG50 |
| 11 | Gland | Ductile Iron GGG50 |
| 12 | O Ring | EPDM |
| 13 | Bolts | CS Gr 8.8 |
Dimensions(mm)
| DN | L | D | C | B | n-d | T | f | Flange Type | W | G | K | N-d1 | S | b | h | H | Torque | Turns | |||||
| PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | ||||||||||||||
| DN40 | 165 | 150 | 110 | 84 | 4-19 | 18 | 3 | F10 | 125 | 102 | 70 | 4-12 | 20 | 6 | 30 | 180 | 30 | 10 | |||||
| DN50 | 178 | 165 | 125 | 99 | 4-19 | 19 | 3 | F10 | 125 | 102 | 70 | 4-12 | 20 | 6 | 30 | 190 | 30 | 13 | |||||
| DN65 | 190 | 185 | 145 | 119 | 4-19 | 19 | 3 | F10 | 125 | 102 | 70 | 4-12 | 20 | 6 | 30 | 210 | 30 | 17 | |||||
| DN80 | 203 | 200 | 160 | 133 | 4-19 | 8-19 | 19 | 3 | F10 | 125 | 102 | 70 | 4-12 | 20 | 6 | 30 | 230 | 40 | 20 | ||||
| DN100 | 229 | 220 | 180 | 154 | 8-19 | 19 | 3 | F10 | 125 | 102 | 70 | 4-12 | 20 | 6 | 30 | 265 | 40 | 25 | |||||
| DN125 | 254 | 250 | 210 | 184 | 8-19 | 19 | 3 | F10 | 125 | 102 | 70 | 4-12 | 20 | 6 | 30 | 305 | 60 | 21 | |||||
| DN150 | 267 | 285 | 240 | 210 | 8-23 | 19 | 3 | F10 | 125 | 102 | 70 | 4-12 | 20 | 6 | 30 | 350 | 70 | 25 | |||||
| DN200 | 292 | 340 | 295 | 265 | 8-23 | 12-23 | 20 | 3 | F10 | 130 | 102 | 70 | 4-12 | 20 | 6 | 30 | 445 | 80 | 34 | ||||
| DN250 | 330 | 405 | 350 | 355 | 319 | 12-23 | 12-28 | 22 | 3 | F14 | 175 | 140 | 100 | 4-18 | 30 | 8 | 30 | 555 | 100 | 42 | |||
| DN300 | 356 | 460 | 400 | 410 | 370 | 12-23 | 12-28 | 24.5 | 4 | F14 | 175 | 140 | 100 | 4-18 | 30 | 8 | 30 | 615 | 120 | 50 | |||
| DN350 | 381 | 520 | 460 | 470 | 429 | 16-23 | 16-28 | 26.5 | 4 | F14 | 175 | 140 | 100 | 4-18 | 30 | 8 | 30 | 760 | 140 | 30 | |||
| DN400 | 406 | 580 | 515 | 525 | 480 | 16-28 | 16-31 | 28 | 4 | F14 | 175 | 140 | 100 | 4-18 | 30 | 8 | 30 | 840 | 160 | 34 | |||
| DN450 | 432 | 640 | 565 | 585 | 530 | 548 | 20-28 | 20-31 | 30 | 4 | F14 | 175 | 140 | 100 | 4-18 | 30 | 8 | 30 | 910 | 200 | 38 | ||
| DN500 | 457 | 670 | 715 | 620 | 650 | 582 | 609 | 20-28 | 20-34 | 26.5 | 31.5 | 4 | F16 | 210 | 165 | 130 | 4-22 | 40 | 12 | 40 | 990 | 280 | 42 |
| DN600 | 508 | 780 | 840 | 725 | 770 | 682 | 720 | 20-31 | 20-37 | 30 | 36 | 5 | F16 | 210 | 165 | 130 | 4-22 | 40 | 12 | 40 | 1170 | 290 | 50 |
Technical Data
| No | Description | Specification |
| 1 | Nominal Dia | DN40-DN600 |
| 2 | Nominal Pressure | PN10&PN16 |
| 3 | Valve Design Standard | BS5163 |
| 4 | Face to Face Standard | EN558&ISO5752 Series-3 |
| 5 | Flange Standard Conformity | EN1092-2 |
| 6 | Testing Standard | EN12266-1 |
| 7 | Expoxy Coating | Epoxy powder coating with minimum thickness of 250 microns inside and outside. |
| 8 | Testing Pressure | |
| Shell Test | PN*1.5Times | |
| Sealing Test | PN*1.1Times | |
| 9 | Working Temperature(Max) | 120℃ |
