DIN Resilient Seated Gate Valve

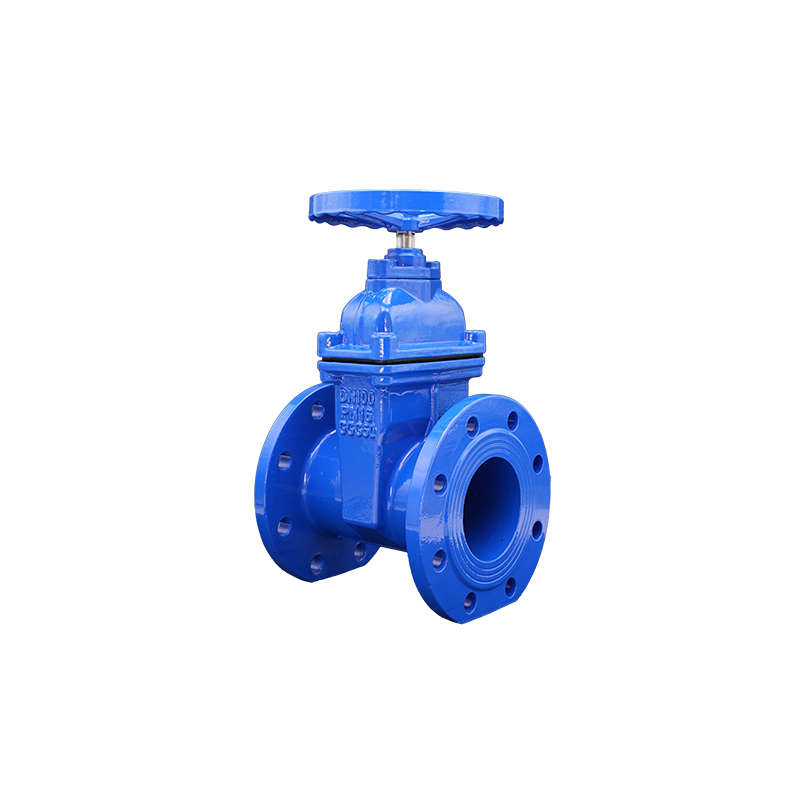

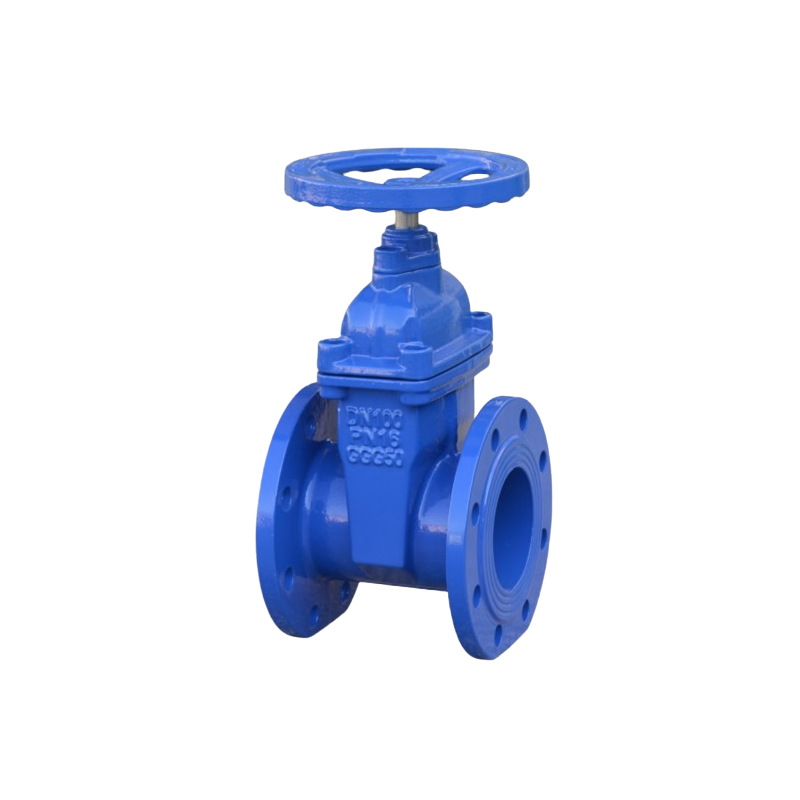

Resilient Seated Gate Valve DIN3352 F4 DN40-DN600

The Resilient Seated Gate Valve DIN3352 F4 is a versatile, high-performance valve designed for reliable fluid shutoff in industrial systems. Available in sizes ranging from DN40 to DN600, this valve is ideal for applications in water supply, sewage systems, oil & gas, and chemical industries. It complies with DIN3352 F4 standards, making it a trusted solution for a variety of industrial pipelines.

Product Description

Key Features:

Sealing Mechanism:

Disc: Coated with EPDM, ensuring a leak-proof seal.

Non-rising Stem:

Saves installation space and ensures smooth operation.

Material Strength:

Body made from ductile iron (GGG50), offering high tensile strength and impact resistance.

Corrosion Resistance:

Fusion-bonded epoxy coating on both the interior and exterior provides superior corrosion resistance.


Applications:

  • Municipal Water Supply: Ensures a reliable shutoff for urban and rural water systems.

  • Sewage Treatment: Withstands the corrosive environments of sewage pipelines.

  • Oil & Gas Pipelines: Handles the rigorous demands of industrial fluids and gases.

  • Chemical Processing: Suitable for mild to highly corrosive materials like acids, oils, and hydrocarbons.


Advantages:

  • Durability: The ductile iron body and resilient seat ensure long-lasting performance.

  • Low Maintenance: Equipped with three O-ring seals, the valve requires minimal maintenance while allowing for easy replacement of parts.

  • Smooth Operation: Low torque operation ensures ease of use, with options for handwheel or gear operation.

  • Warranty: Comes with a two-year warranty, reflecting its high-quality design.


Certifications and Standards:

  • Complies with DIN3352 F4, EN1171, EN1074, and AWWA C515 standards, ensuring performance and safety are maintained at the highest levels.


Technical Parameter

Part & Materials

Part & Materials

NoPartMaterial
1BodyDuctile Iron GGG50
2WedgeDuctile Iron GGG50 +EPDM
3Stem NutBrass
4StemSS420
5GasketEPDM
6BonnetDuctile Iron GGG50
7Locating RingBrass
8O RingEPDM
9BoltsCS Gr 8.8
10Hand Wheel/CapDuctile Iron GGG50
11GlandDuctile Iron GGG50
12O RingEPDM
13NutsA2-70
14WasherCarbon Steel
15BoltsCS Gr 8.8

Dimensions(mm)

DNLDCBn-dbfWH
PN10PN16PN10PN16PN10PN16PN10PN16PN10PN16
DN40140150110844-19183160190
DN50150165125994-19193160205
DN651701851451194-19193160225
DN801802001601334-198-19193180250
DN1001902201801548-19193200285
DN1252002502101848-19193250330
DN1502102852402108-23193250375
DN2002303402952658-2312-23203300480
DN25025040535035531912-2312-28223330590
DN30027046040041037012-2312-2824.54380650
DN35029052046047042916-2316-2824.526.54490770
DN40031056558051552548016-2816-3124.5284490850
DN45033064056558553020-2820-3125.5304490920
DN50035067071562065058260920-2820-3426.531.545901000
DN60039078084072577068272020-3120-37303655901190


Technical Data

NoDescriptionSpecification
1Nominal DiaDN40-DN600
2Nominal PressurePN10&PN16
3Valve Design StandardDIN3352 F4
4Face to Face StandardEN558&ISO5752 Series-14
5Flange Standard ConformityDIN2533
6Testing StandardDIN3230
7Expoxy CoatingEpoxy powder coating
with minimum thickness of 250
microns inside and outside.
8Testing Pressure
Shell TestPN*1.5Times
Sealing TestPN*1.1Times
9Working Temperature(Max)120℃

FAQ

Q: How long does it take to quote?

A:

We will give you feedback as soon as we receive the inquiry.


Q: What is the MOQ of the products?

A:

We have no minimum order quantity requirement.

Q: What are the packaging of the products?

A:

Fumigation-free wooden box/wooden pallet.

Q: What are the transportation methods of the products?

A:

We offer shipping options including sea freight, truck transportation, and rail transport for our customers to choose from.
