Flow Control Valve

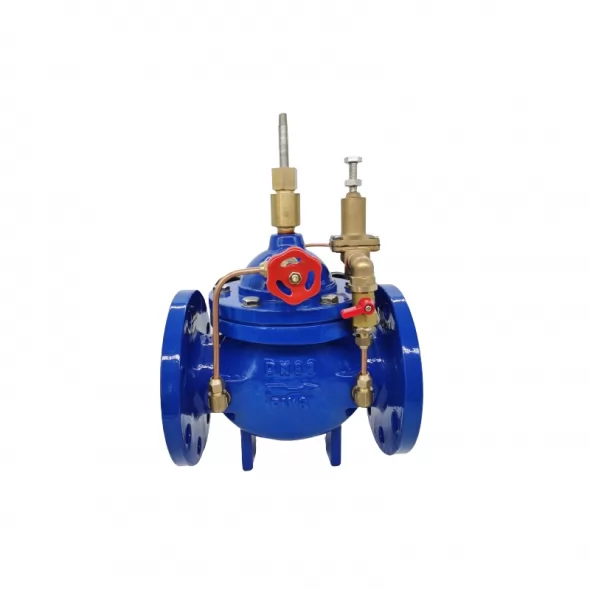

400X Flow Control Valve DN50-DN800

Technical Parameter

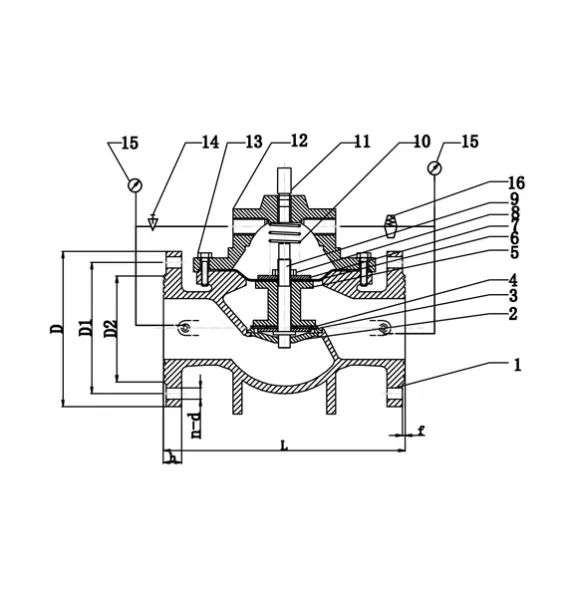

Part & Materials

Part & Materials

NoPartMaterial
1BodyDuctile Iron GGG50
2SeatBrass
3PlatenCS
4SealingEPDM
5DiscDuctile Iron GGG50
6DIamphragmEPDM
7PlatenCS
8NutStainless Steel
9StemSS410
10SpringStainless Steel
11Flow Pilot ValveBrass
12BonnetDuctile Iron GGG50
13BoltsA2-70
14NeedleBrass
15Pressure Gauge-
16Pressure Pilot ValveBrass

Dimensions(mm)

DNLDCBn-dbf
PN10PN16PN10PN16PN10PN16PN10PN16PN10PN16
DN50240160125994-19193
DN652401801451194-19193
DN802921951601338-19193
DN1003252151801548-19193
DN1253402452101848-19193
DN1504002802402108-23193
DN2004353352952658-2312-23203
DN25051040535035531912-2312-28223
DN30060046040041037012-2312-2824.54
DN35067552046047042916-2316-2826.54
DN40072057551552548016-2816-31284
DN45072063551552548016-2816-31284
DN50079071062065058260920-2820-3431.54
DN60097084072577068272020-3120-37365
DN700112091084079424-3124-3739.55
DN8001200102595090124-3424-4035435


Technical Data

NoDescriptionSpecification
1Nominal DiaDN50-DN800
2Nominal PressurePN10&PN16
3Flange Standard ConformityEN1092-2
4Expoxy CoatingEpoxy powder coating
with minimum thickness of 250
microns inside and outside.
5Working Temperature(Max)80℃
