Knife Gate Valve vs Gate Valve: Function, Cost & Application

Introduction

Valves are essential components in industrial applications, playing a vital role in controlling the flow of various media, whether liquids, gases, or slurries. From water treatment plants to chemical processing facilities, valves such as the knife gate valve vs gate valve are crucial for ensuring systems function efficiently and safely. These valves stand out due to their specific capabilities in managing different flow types.

Choosing between the knife gate valve vs gate valve requires a thorough understanding of their distinctions, as selecting the incorrect valve for a specific application can result in operational inefficiencies, maintenance challenges, and even safety concerns. This comparison explores the knife gate valve vs gate valve, examining their construction, function, cost, and the ideal use cases for each.

Understanding the Basics: What is a Knife Gate Valve?

A knife gate valve is a type of valve that uses a sharp-edged gate to slice through thick media. Its primary function is to isolate or control the flow of viscous fluids, slurries, or solids that could otherwise clog other types of valves. Knife gate valves are especially popular in industries dealing with pulp, paper, wastewater, and mining applications due to their ability to handle abrasive and thick fluids.

Key Components and Materials Used

Knife gate valves are typically constructed using stainless steel or other corrosion-resistant materials, designed to withstand aggressive media. The key components include the gate (which is the knife that cuts through the material), the valve body, and sealing elements like elastomers or metal seats that ensure tight shut-off when the valve is closed.

How a Knife Gate Valve Operates

The operation of a knife gate valve is straightforward. When the valve is opened, the gate lifts out of the flow path, allowing media to pass through. When closed, the sharp gate drops down, cutting through any solid particles to create a tight seal. This makes it particularly effective in handling slurry and other dense media without blockage.

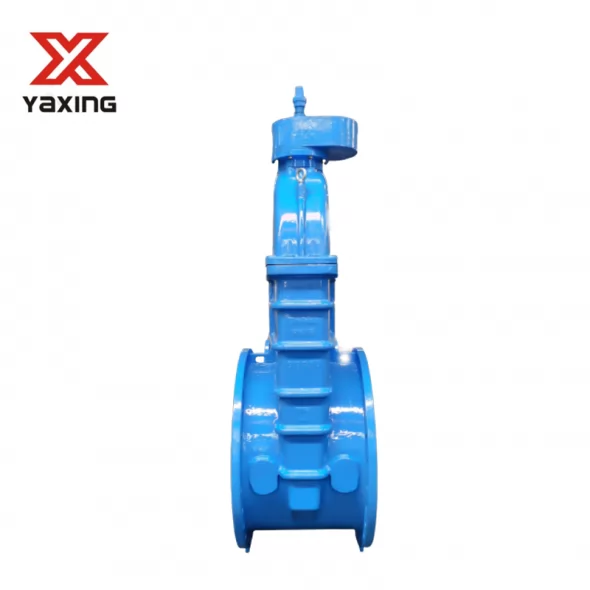

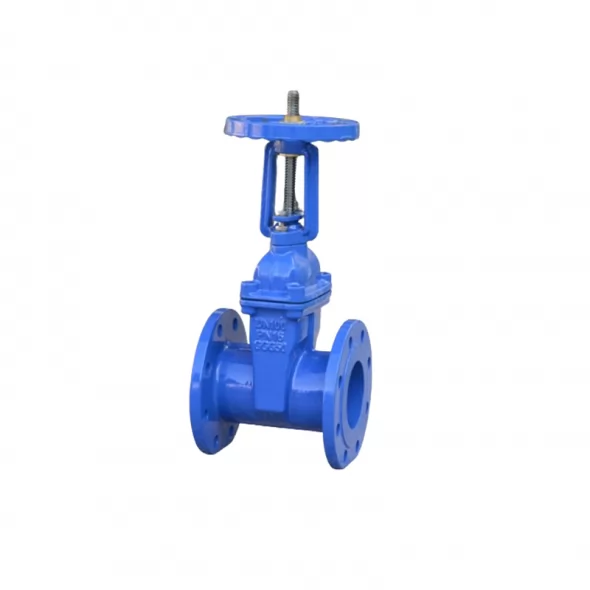

Understanding the Basics: What is a Gate Valve?

A gate valve is a more traditional valve used to start or stop the flow of a fluid. Its design relies on a gate, which moves vertically to control the flow. Gate valves are commonly used in applications where a full flow with minimal resistance is needed, such as in water distribution, oil and gas, and power generation systems.

Key Components and Materials Used

Gate valves are built using a variety of materials, including brass, cast iron, and stainless steel, depending on the application. Key components include the valve body, gate, bonnet (which houses the valve mechanism), and a stem that controls the gate's movement. Seals, typically made of rubber or metal, are used to prevent leakage when the valve is closed.

How a Gate Valve Operates

In operation, a gate valve works by raising or lowering a flat or wedge-shaped gate across the flow path. When fully open, the gate is completely out of the flow, allowing for minimal pressure drop and maximum flow. When closed, the gate fully obstructs the flow, providing a tight seal for applications that require complete shutoff.

Functional Differences Between Knife Gate Valves and Gate Valves

Movement and Sealing Mechanisms

Knife gate valves rely on a sharp gate that cuts through the material, making them better suited for slurries or solids-laden fluids. In contrast, gate valves use a vertical gate, often wedge-shaped, to block or allow fluid passage, which works better for clean liquids.

Flow Control Capabilities: Throttling vs. Full Shut-off

Gate valves offer poor throttling control because they are designed for fully open or fully closed operation. Knife gate valves, on the other hand, provide limited throttling capabilities, though they are primarily used for shut-off in slurry applications.

Pressure Ratings and Fluid Handling Differences

Gate valves are generally more robust, designed to handle high-pressure environments. Knife gate valves, by comparison, are best suited for low-pressure applications due to their construction and the materials they typically handle.

Cost Comparison: Which is More Economical?

Initial Purchase Cost: Knife Gate Valves vs. Gate Valves

In terms of initial purchase, knife gate valves are often more affordable than gate valves due to their simpler construction. However, this cost difference depends on the materials used and the valve size.

Long-Term Maintenance and Operational Costs

While knife gate valves are initially cheaper, their long-term operational costs may be higher if used in the wrong application. Gate valves, while more expensive upfront, typically require less maintenance in clean fluid systems, reducing long-term costs.

Durability and Lifespan: Factors Influencing Total Cost of Ownership

Gate valves generally have a longer lifespan in clean, high-pressure applications, whereas knife gate valves, though effective in specific environments, may require more frequent maintenance and replacement in corrosive or high-pressure conditions.

Application Scenarios: When to Use a Knife Gate Valve

Ideal Industries and Use Cases for Knife Gate Valves

Knife gate valves are ideal for industries that deal with thick, slurry-like materials such as wastewater treatment, mining, and paper production.

Types of Media Handled: Thick Fluids, Slurries, and Waste Materials

These valves excel in handling viscous fluids, slurries, and even solids, making them a preferred choice for applications that would clog other valve types.

Advantages in Abrasive Environments

The cutting action of the knife gate valve’s blade makes it ideal for abrasive environments, where sediment or debris would damage traditional valves.

Application Scenarios: When to Use a Gate Valve

Ideal Industries and Use Cases for Gate Valves

Gate valves are widely used in water supply systems, the oil and gas industry, and power generation plants, where high pressure and clean fluids are prevalent.

Types of Media Handled: Water, Gas, and Clean Liquids

Unlike knife gate valves, gate valves are optimized for clear fluids and gases, offering exceptional sealing for high-pressure, high-temperature applications.

Advantages in High-Pressure and High-Temperature Systems

Gate valves are superior in high-pressure environments due to their robust sealing and pressure handling capabilities, making them a go-to solution for industrial pipelines.

Pros and Cons: Knife Gate Valve

Advantages: Design Flexibility, Low-Cost Maintenance, Effective with Solids

Knife gate valves are highly efficient for thick media, providing design flexibility and relatively low maintenance costs in applications involving solids or slurry.

Disadvantages: Limited in High-Pressure Applications, Potential Leakage Risks

However, they are not suitable for high-pressure environments and may exhibit leakage issues if not properly maintained or if used beyond their pressure ratings.

Pros and Cons: Gate Valve

Advantages: High Durability, Strong Sealing Capabilities, Handles High Pressure

Gate valves offer exceptional durability, making them ideal for high-pressure and high-temperature applications where a reliable seal is critical.

Disadvantages: Slower Operation, Susceptible to Corrosion, Expensive Repairs

The downside of gate valves includes their slower operation, susceptibility to corrosion (especially in harsh environments), and higher maintenance and repair costs.

Choosing the Right Valve for Your Application

Consideration Factors: Budget, Fluid Type, System Pressure, and Valve Performance Needs

When selecting a valve, key factors to consider include your budget, the type of fluid you are handling, the system’s pressure requirements, and the valve’s overall performance in that environment.

Decision-Making Matrix: Matching Valve Type to Industry Demands

Creating a decision matrix that aligns your operational needs with the specific strengths of either knife gate or gate valves will help optimize performance and reduce costs.

Expert Tips for Optimizing Valve Performance and Longevity

Regular maintenance, correct installation, and ensuring the valve is suited to the application’s media and pressure requirements can extend the lifespan of both knife gate and gate valves.

Conclusion

The choice between knife gate valves and gate valves boils down to the specific needs of your application. Knife gate valves are ideal for low-pressure, slurry-handling environments, whereas gate valves shine in high-pressure, clean-fluid applications. By carefully considering function, cost, and application, you can select the valve that will provide optimal performance and long-term cost savings.
